Tension Clamp: Suspension Anchoring Clamp-ABC Tension Clamp PA Series
Suspension Anchoring Clamp/ABC Tension Clamp: PA Series

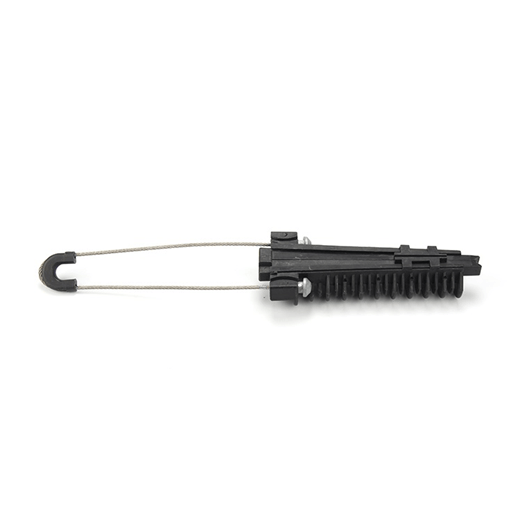

This Conical wedge clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting of one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.
Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel loop can be fixed into a closed eye bracket.
Product |
Breaking load | Section area (mm2) |
PA25* |
2.5KN |
16-25 |
PA50 |
2.5KN | 25-50 |
PA54 | 6KN |
50-70 |
PA95 | 6KN |
70-95 |
PA120 | 6KN | 95-120 |
